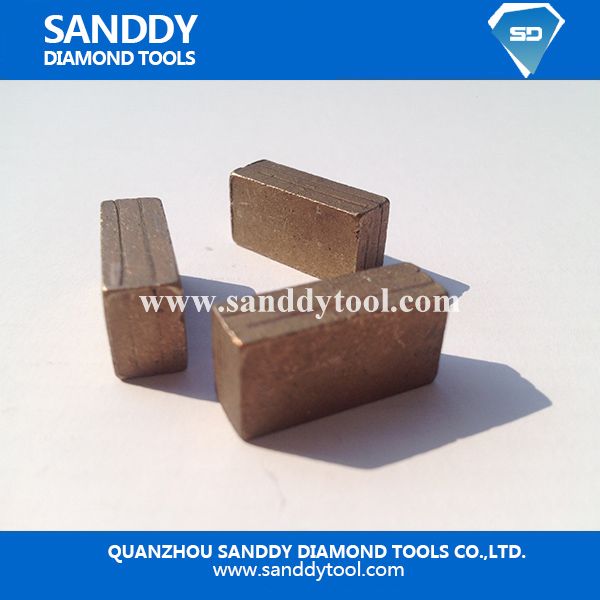

Marble Block Cutting Segment


Marble Block Cutting Segment

Description:

Marble cutting segment is used for silver welded to he circular steel blank , used for trimming & cutting slab edge, suitable for limestone, kinds of soft stones without quartz. With Advantages of easy & smooth cutting , less chips, long life and stable.

Features:

High quality, sharp cutting

cutting steady , no chipping slab

long cutting life

Application:

For Bridge saw cutting

Wet marble cutting

For Single marble cutting



The normal size:

The normal specification we are manufacturing as below:
Diameter
(mm/inch)
Segment Size
LXWXH(mm)
Steel blank
 Thickness(mm)
Segment
 No
Segment Type
900mm(36")
24x6.6/6.2x12/x20
5.0
64
Sandwich
&Layer type
1000mm(40")
24x7.4/6.8x12/x20
5.5
70
1100mm(44")
24x7.4/6.8x12/x20
5.5
74
1200mm(48")
24x7.5/7.0x12/x20
6.0
80
1300mm(52")
24x8.0/7.4x12/x20
6.0
88
1400mm(56")
24x9.0/8.4x12/x20
6.5
92
1600mm(64")
24x9.2/8.6x12/x20
7.3
108
1800mm(72")
24x10.4/9.6x15/x20
7.3
120
2000mm(80")
24x10.4/9.6x15/x20
8.0/9.0
128
2200mm(86")
24x11.5/10.5x15/x20
9.0
132/136
2500mm(100")
24x12.5/11.5x20
9.5
140
3000mm(120")
24x13.1/12.2/11.5x20/x30
10.0
160
3500mm(140")
24x13.8/13/12.2x20/x30
10.0
180
Remarks: Other segment size can be made according to the customer demands
